- PERMANENT R5 PER 1-1/16 INCH
- IMPROVED THERMAL PERFORMANCE
- LIGHTWEIGHT & DURABLE
Chrome GPS™ professional grade, rigid insulation board delivers a higher permanent R-value that won’t deteriorate over time like XPS. High-performance Chrome GPS™ is powered by graphite enhanced polystyrene (GPS). Distinguished by its distinctive silver/gray color, GPS is comprised of many small pockets of air within a polymer matrix containing graphite. The graphite reflects radiant heat energy like a mirror and increases the resistance GPS has to the flow of heat (or R-value) by up to 20% when compared to conventional white EPS.
Features & Benefits
- Unfaced, Graphite enhanced polystyrene (GPS)
- Interior, exterior, below-grade applications
- R5 per nominal inch*
- GPS provides a permanent long-term R-value and won’t deteriorate over time like XPS and ISO
- Minimizes the energy loss from thermal bridging
- Light, durable, easy to cut and install
- GPS is 100% recyclable which contributes to environmental sustainability
- Available thicknesses ½” – 3 3/16”, 15 and 25 PSI
* Thermal performance claim based on a thickness of 1-1/16”
Specifications
| Thickness | R Value |
| ½” | R2.35 |
| 5/8” | R3 |
| ¾” | R3.53 |
| 13/16” | R4 |
| 1” | R4.7 |
| 1 1/16” | R5 |
| 1 ½” | R7.05 |
| 1 ⅝” | R7.5 |
| 2” | R9.4 |
| 2 ⅛” | R10 |
| 2 ½” | R11.75 |
| 2 ⅝” | R12.5 |
| 3” | R14.1 |
| 3 3/16” | R15 |
| Properties | Chrome GPS™ 15 | Chrome GPS™ 25 |
| Compressive Strength | 14 | 25 |
| Water Vapor Permanence | 3.5 perms | 2.5 perms |
| Water Absorption | 1.1 | 1.1 |
*Per nominal inch (1.06″)

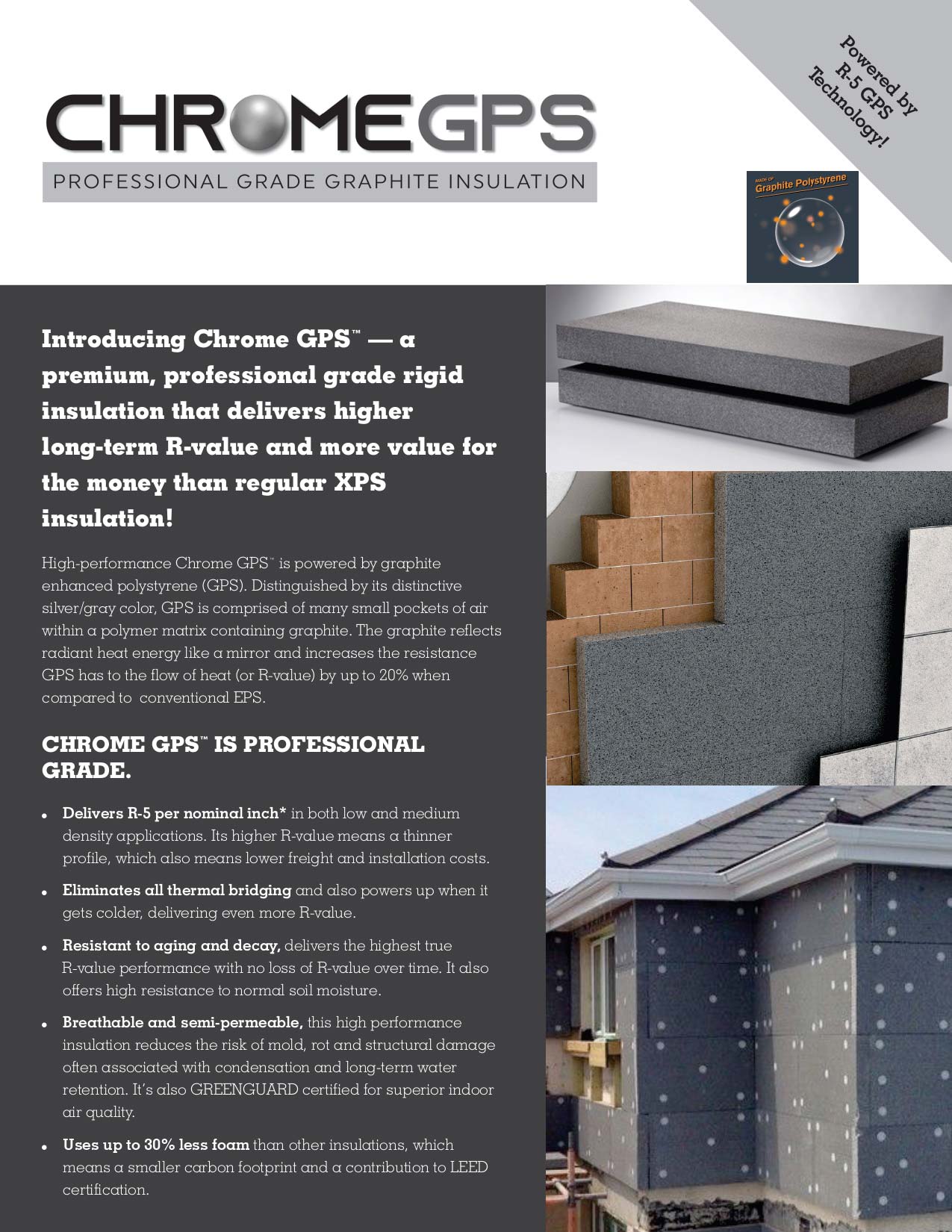

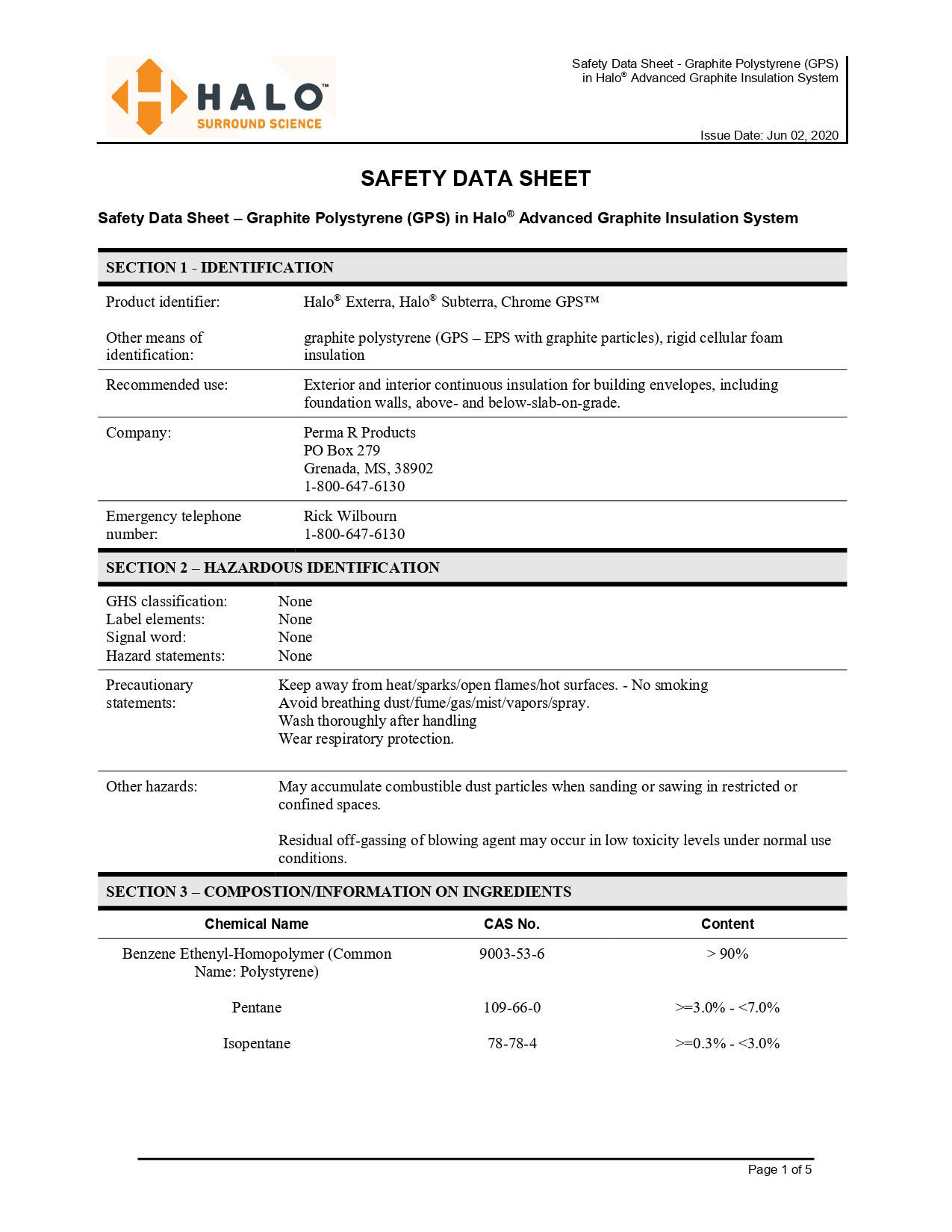

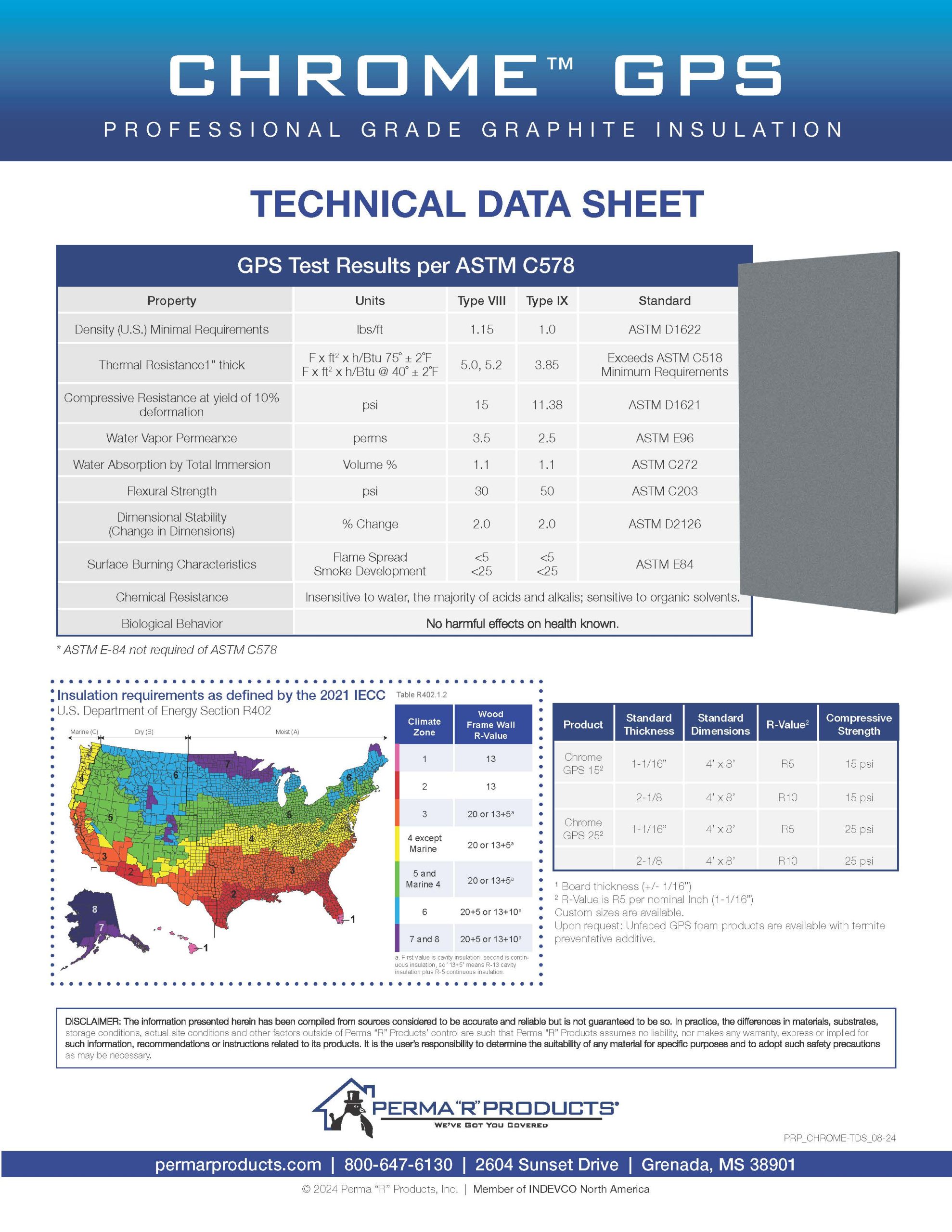

Downloads
Similar Products
No results found.
FAQs
What is the difference between Chrome GPS and the Halo line?
Both are GPS insulation board; however, °Chrome is unfaced whereas the Halo line has intuitive facers designed for its specified application.
What applications can I use Chrome GPS for?
Chrome is suitable for use in basement crawl spaces, attics, and above-grade exterior insulation.
